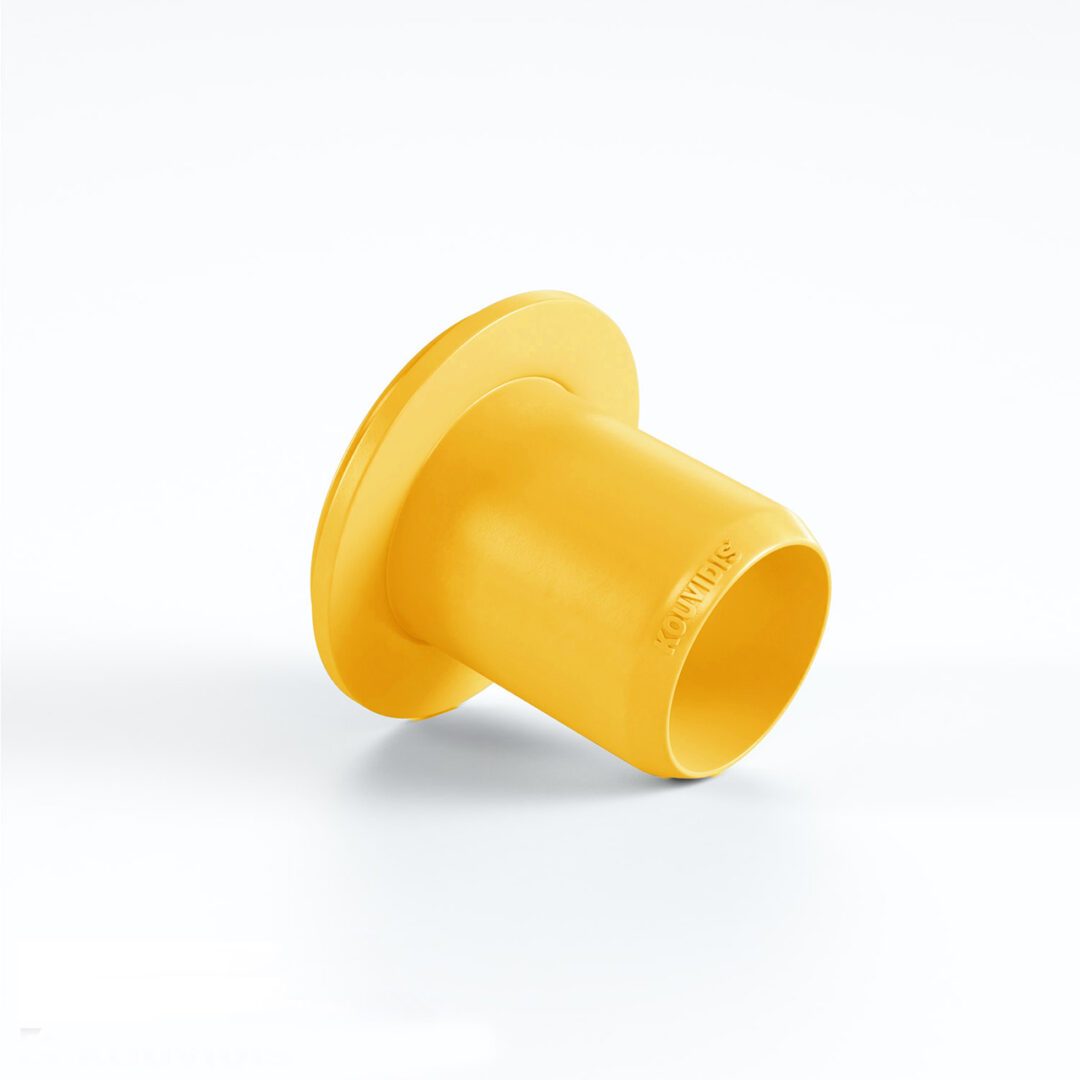

SUPERSOL PLUS ISR adaptor for watertight junction boxes
SUPERSOL PLUS adaptor is designed to be assembled with SUPERSOL PLUS junction box after removing their seals for the safe connection of rigid and pliable 3layer conduits SUPERSOL PLUS and SUPERFLEX PLUS respectively.
Along with the 3layer conduits SUPERSOL PLUS and SUPERFLEX PLUS, the fittings (connection coupler and clip) and the junction boxes with grommets, all in yellow color RAL 1023, they compose a special conduit system which is capable of covering multiple needs at the electrical installation.
APPLICATION FIELD
- APPLICATION STANDARD:EN 61386.21
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)
- COLOR:RAL 1023 Yellow
- NOMINAL DIAMETER:Nominal outer diameter (DN/OD)
Product Conformity to all requirements of relative European Directives.- Min-max permanent application temperature
- Non flame propagating product
- Product is made of halogen free raw materials
- Antistatic Technology IAS (Patent Protected 1009810)
- Antiscratch Technology ISR (Patent Protected 1010513)
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1Assembled with SUPERSOL PLUS junction box with grommets
2Ø16 and Ø20 adaptors can be mounted on 67x67x38mm (type 16/20) and 82x82x43mm (type 20/16) SUPERSOL PLUS junction boxes
3Ø25 and Ø32 adaptors can be mounted on 101x101x51mm (type 25/32) SUPERSOL PLUS junction box
4No toxic or corrosive gases in case of fire
5Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
6Protection against scratching from cable routing (Patent Protected: 1010513)
| Properties | |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PO blend |
| Temperature range | -25oC to+60oC |
| Electrical characteristics | With electrical insulated characteristics |
| Resistance to flame propagating | Non flame propagating |
| Halogen free | No toxic or corrosive gases in case of fire |
| Antistatic technology | Protection against static electricity |
| Antiscratch Technology | Protection against scratching from cable routing |
| Type | Part number |  |
 |
 |
 |
 |
 |
| Ø16 | 4057016 | 13.0 | 16.0 | 18.5 | 20 | 4×30 | 1800 |
| Ø20 | 4057020 | 16.5 | 20.0 | 22.5 | 20 | 4×30 | 1200 |
| Ø25 | 4057025 | 21.5 | 25.0 | 32.0 | 33 | 20 | 1260 |
| Ø32 | 4057032 | 27.5 | 32.0 | 35.0 | 33 | 20 | 960 |
